Designed, Engineered and Built in the US >>

Inline Modular Pallet Retriever

Time is of the essence when preparing meat, poultry and other products for frozen food shipment.  It’s important to freeze products as quickly as possible to preserve flavor, avoid ice crystallization, and save on energy costs. And the sooner the product is frozen, the sooner the next pallet can be accommodated. Prior to stretch wrapping and shipping, every plastic freezer spacer resting in between each layer must be removed. Safety issues can arise here, because it typically requires a lot of movement and human involvement, much of it usually on the dock. There’s a better way. Experience the automation advantage with our Inline Freezer Spacer Removal system.

PSR-DL

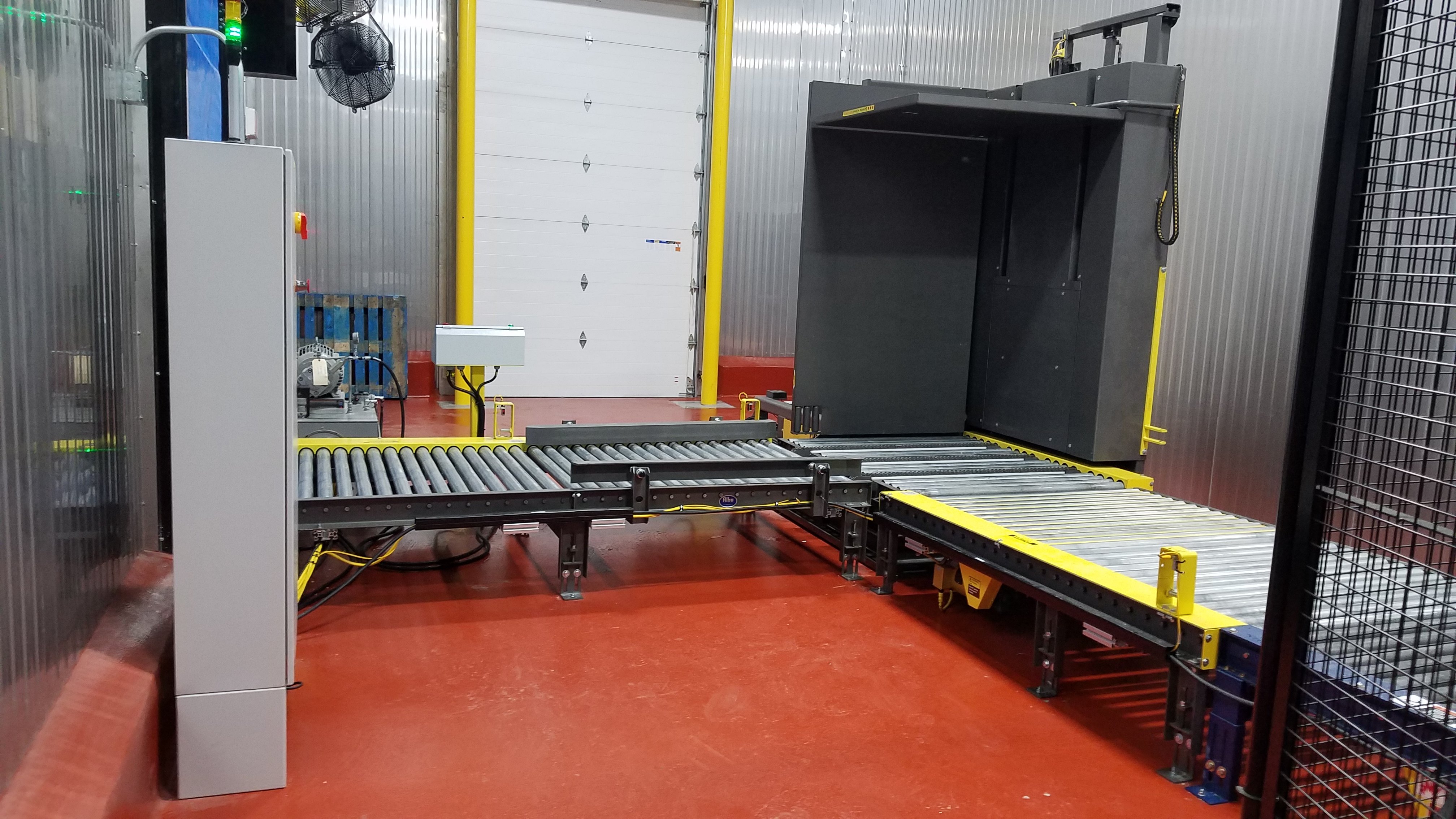

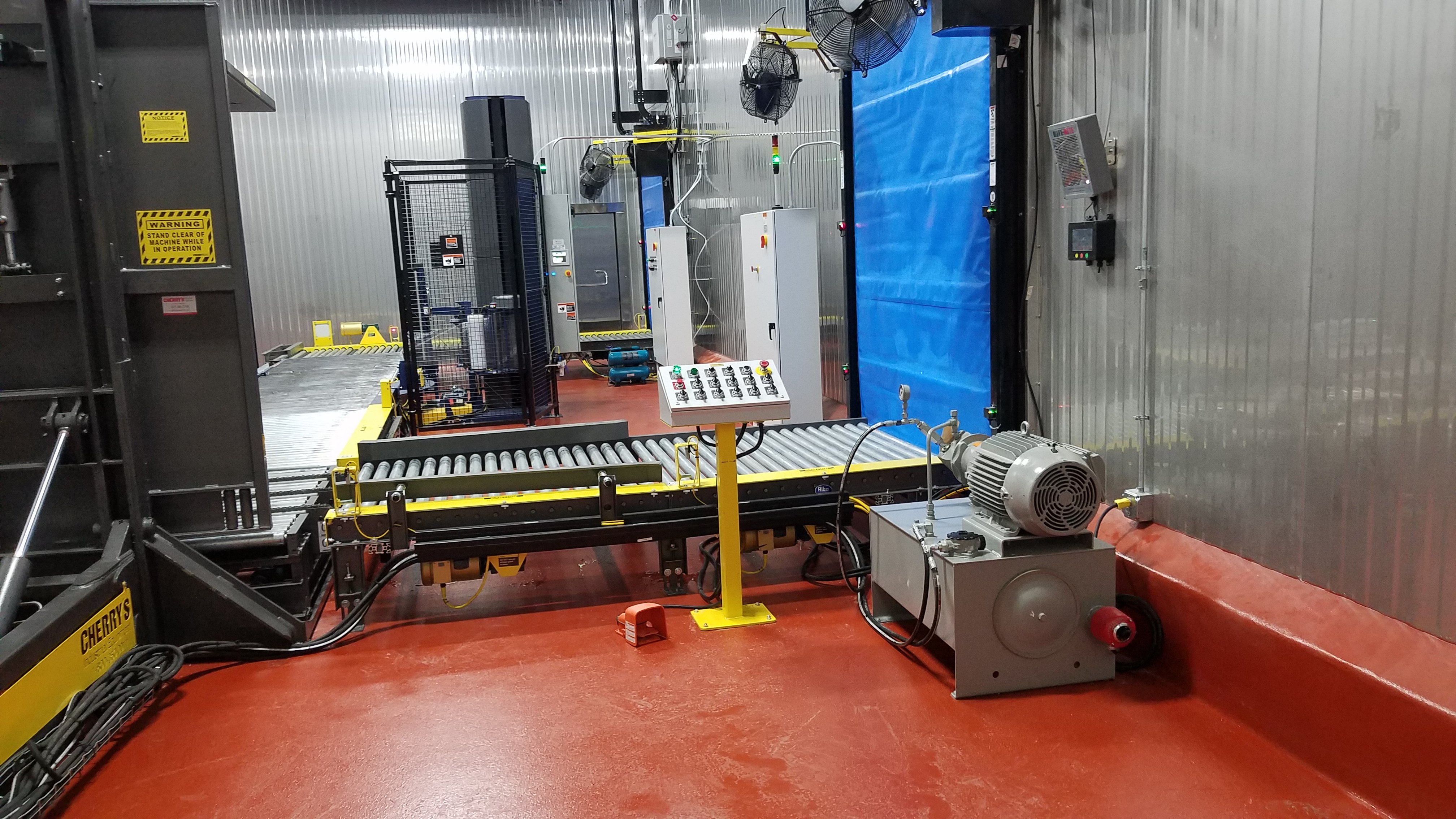

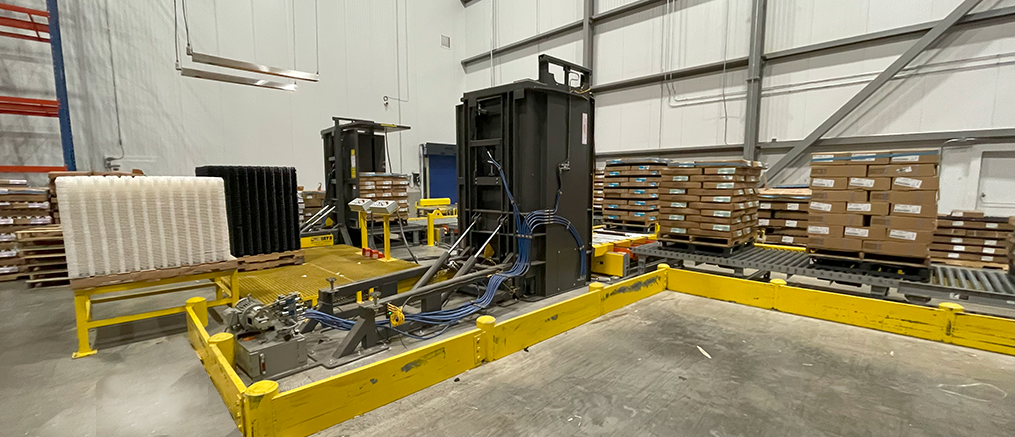

The PSR Inline System eliminates the need for manually hand stacking boxes on separate pallets to retrieve freezer spacers. The staged pallet load goes into the PSR; the load is then tipped on its side. With one operator, the PSR Inline system will allow quick, safe and easy recovery of freezer spacers. Once completed, the pallets continue downstream through the Inline Stretch Wrapper, and all staging and exit conveyor movements accomplished automatically.

Components

The PSR-DL-110, semi-automatic direct load freezer spacer removal system. Auto load indexing, heavy duty construction, CDLR conveyor for 90 degree discharge. Maximum product height with spacers is less than 88", weight up to 2500 lbs. Environment is 25 degrees F. Pallets must be in good condition and conveyable. Made in the USA.

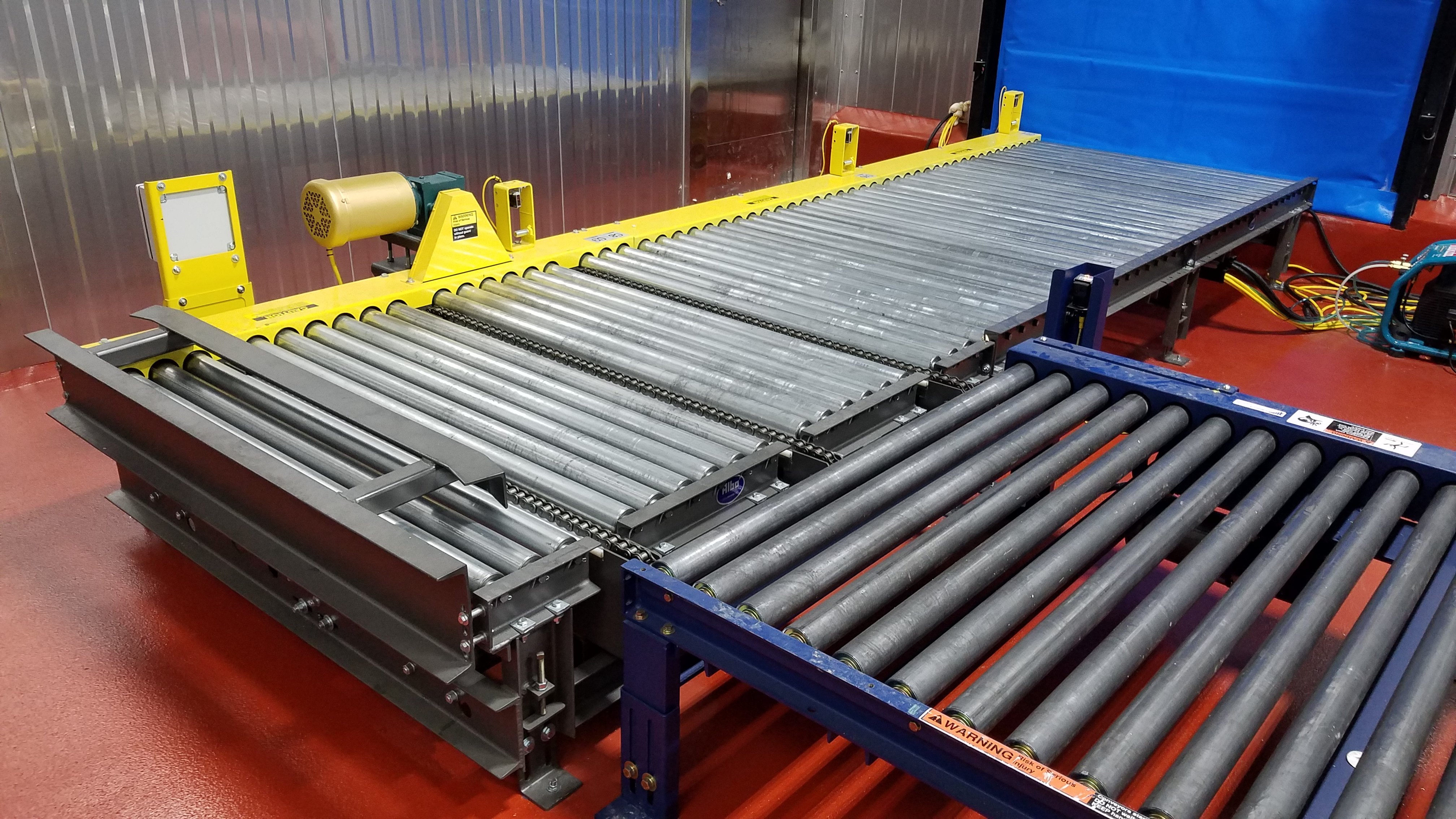

Conveyorized Pallet/Load Squaring device capable of squaring either stacks of pallets or palletized loads up to 2,500 lbs on two (2) sides.

Say goodbye to manually hand stacking boxes on separate pallets to retrieve freezer spacers, and hello to the automation advantage of the Inline Freezer Spacer Removal. Increased speed. Less chance of workplace injury. Reduction of dock forklift traffic and a greater return on investment. Let us help you design the system that works best for your faculty.

Recommended Complimentary Products

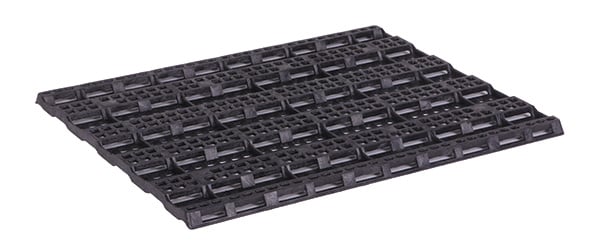

Rigid Freezer Spacer

Risk Assessment and Safety Services

We recognize that safety is a top priority in any warehouse environment.

Learn more about how our risk assessment and safety/ergonomic review can help you avoid costly workplace accidents and injuries.
