Low Duty Tippers

Have a question about Low Duty Tippers? Reach out to our team at 847-565-2667. Cherry's Industrial Equipment manufactures highly engineered pallet handling and ergonomic equipment to assist the warehouse, dock, or line worker. To create solutions for the ergonomic and safety issues found throughout the industry, Cherry’s Industrial product line expands to pallet retrievers, tippers, and dispensers. With customers’ requests for various unique applications, custom solutions soon became a standard item for the production team. Cherry’s Industrial respects the client and understands what matters.

Filtered on:

Category: Tippers And Upenders, Low Duty Tippers

Available for Online Purchase

No

Category

Low Duty Tippers
Showing 1 - 8 of 8

LDT-2000-T1 Pallet Tipper

SKU:

LDT-2000-T1

The LDT-2000-T1 90-degree pallet tipper/upender allows for ground-level loading and is unloaded at a raised height by a forklift. Engineered and constructed in the United States using premium materials, this pallet upender is ideal for low volume production with a 2,000 lb capacity. The units are built to specification with options of single phase or 460V three-phase electric hook up and included hydraulic power pack and shipping frame. On-site assembly is required and the unit must be anchored to the ground securely before use. Special orders are available with the vertical table and horizontal table configurable to your specifications.

LDT-4000-T1 Pallet Tipper

SKU:

LDT-4000-T1

4000 lb. Capacity, 90 degree Tipper/Upender which can be loaded at ground level, unloaded at raised height by forklift truck. Special order; custom built to specifications. 230V or 460V 3-phase motor. Hydraulic power pack included. Shipping frame provided. On-site assembly required. Must be securely anchored to ground before use.

LDT-2000-T2 Pallet Tipper

SKU:

LDT-2000-T2

2000 lb. capacity 90 degree tipper loaded and discharged at raised height. Special order; custom built to specifications. 230V or 460V 3-phase motor. Hydraulic power pack included. Shipping frame provided. On-site assembly required. Must be securely anchored to ground before use.

LDT-4000-T2 Pallet Tipper

SKU:

LDT-4000-T2

4000 lb. capacity 90 degree tipper loaded and discharged at raised height. Special order; custom built to specifications. 230V or 460V 3-phase motor. Hydraulic power pack included. Shipping frame provided. On-site assembly required. Must be securely anchored to ground before use.

LDT-2000-T3 Pallet Tipper

SKU:

LDT-2000-T3

2000 lb 90 degree tipper loaded and at a raised height approx. 8-10 from the floor. Special order; custom built to specifications. 230V or 460V 3-phase motor. Hydraulic power pack included. Shipping frame provided. On-site assembly required. Must be securely anchored to ground before use.

LDT-4000-T3 Pallet Tipper

SKU:

LDT-4000-T3

4000 lb 90 degree tipper loaded and at a raised height approx. 8-10 from the floor. Special order; custom built to specifications. 230V or 460V 3-phase motor. Hydraulic power pack included. Shipping frame provided. On-site assembly required. Must be securely anchored to ground before use.

LDT-4000-T4 Pallet Tipper

SKU:

LDT-4000-T4

The LDT-4000 T4 end-to-end tipper facilitates ground-level pallet loading and unloading with your motorized walkies or manually operated pallet trucks. Use it to tip loads on their side for easy removal or changing their position from horizontal to vertical. No matter how you use the LDT-4000 T4 90 degree tipper, you'll experience improved production efficiency and a safer work environment.

LDT-6000-T1 Coil Tipper

SKU:

LDT-6000-T1

6000 lb. Capacity, 90 degree Tipper/Upender which can be loaded at ground level, unloaded at raised height by forklift truck. Special order; custom built to specifications. 230V or 460V 3-phase motor. Hydraulic power pack included. Shipping frame provided. On-site assembly required. Must be securely anchored to ground before use.
Showing 1 - 8 of 8



Low duty Pallet Tipper Features

A pallet tipper helps to position product to either a horizontal or vertical position for use or storage. A simple and essential product that requires some thought and engineering before purchase. First would be the sizes and weights of the object, then does it fit within the machine’s capacities. Finally would be the ideal load in height and discharge height and the type of equipment used for load and unloading. Other features of our pallet tippers include:



Functions

  • Safely tip coils, rolls, reels or boxes for storage, shipping or in plant use.

  • Rotate product within a 90-degree radius to change vertical/horizontal orientation for shipping or production.

Operation

  • Up and down push-button control pendant

  • 4 different design types with multiple capacities

  • Standard rail guards or option high style personnel guards

Safety

  • Maintenance locks

  • Line mounted CB valves to hold basket in place

  • Perimeter fencing and light curtains available

Special-Order Modifications

Low Duty Pallet Tippers offer a huge advantage in decreasing the manual labor of shipping and distribution warehouse operations. We carry a number of different models of low duty pallet tippers that can serve the diverse needs of distribution centers and warehouse facilities. Our tippers offer benefits like faster cycle times, fewer accidents and injuries and better use of space, showcasing just a few reasons why pallet tippers are such a valuable asset to your facility.

At Cherry's Industrial our experts can help you find exactly what to look for in a pallet tipping machine that will be most impactful for your warehouse. We start by examining your existing warehouse layout to identify the best place to keep your pallet tipper, and what kind of other industrial equipment you plan to use. In addition to our extensive selection of low duty pallet tipper models, we also offer special-order modifications, specifically designed to help fulfill your needs. Read more about these options below:

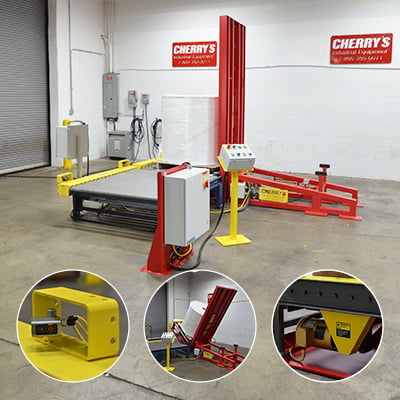

Conveyor

Automating your roll handling process increases throughput with reduced handling, less product damage, and more dollars added to the bottom line. Infeed conveyors index rolls directly into the tipper then are down-ended to a horizontal position and removed with an overhead hook. For finished products, rolls are upended onto a pallet then discharged onto a conveyor for banding. Learn more!

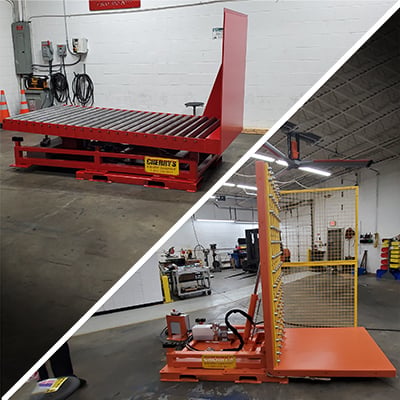

Rollers/Ball Transfer

Eliminate rolling ladders, step stools, and work platforms that cause overexertion when palletizing tall light loads above your head. A pallet tipper allows a single employee to place each box onto the horizontal table and then tip the entire load up onto a pallet for shipping. Rollers, skate table wheels, ball transfers, or UHMW material aid with box placement and eliminate stretching and reaching. Learn more!

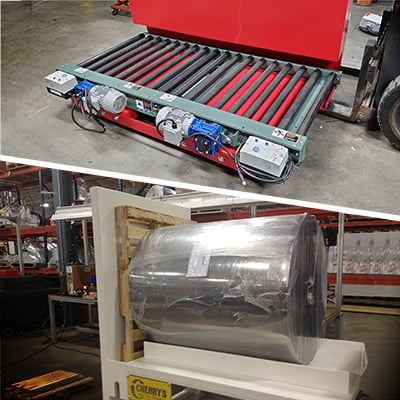

V Cradle

Upend or downend spindles, paper rolls, and coils from a horizontal position to a vertical position or vice versa. A V- cradle stabilizes the roll and restricts movement while tipping. The cradles can be shallow, deep, or built for the specific size of your rolls. Powered or gravity versions are available to un-pinch the product from the pallet for easy ground level removal. Learn more!

Not Finding what You Need?

Custom solutions are completely within reach. At Cherry's Industrial Equipment, we offer budget-friendly custom equipment solutions that are 100% tailored to your facility's needs, no matter how unique.
All of that comes with turnkey service and speedy turnarounds. Learn more about our custom solutions today!

Contact Us

We Offer Several Different Low-Duty Tippers
There are many variables ranging from sizes and weight capacity to load-in and discharge height that determines the type of low-duty tippers you need. At Cherry's Industrial Equipment, we offer multiple models to choose from including:

LDT-2000-T1 Pallet Tipper: This 90-degree tipper is a versatile performer for low-volume turning and tipping of materials to alter the orientation or for more effortless loading on pallets. The LDT-2000-T1 low-duty tipper offers 60 seconds up-cycle and 45 seconds down-cycle times and a 2,000-pound capacity.

LDT-2000-T2 Pallet Tipper: Similar to the LDT-2000-T1, this raised-height to near ground level 90-degree tipper streamlines the process of turning and tipping materials for quicker palletizing or to change orientation. Features include handheld two-button with E-Stop controls and a 2,000 to 4,000-pound capacity.

LDT-2000-T3 Pallet Tipper: The unique design of this low-duty tipper with a 10-inch loading and discharge height is ideal for applications utilizing stackers and overhead cranes. Units are designed for simple and effective operation and made in the U.S.A.

LDT-4000-T1 Pallet Tipper: Built from high-quality materials and engineered for trouble-free operation, these low-duty tippers have a positive impact on productivity. Whether you're turning paper rolls from vertical to horizontal or tipping boxes to load onto pallets, this machine is built to get the job done right.

LDT-4000-T2 Pallet Tipper: The LDT-4000-T2 low-duty tipper offers raised, near ground-level loading and three-sided entry and operation. Features include handheld three-button pendant controls and a configurable loading table and horizontal table sizes.

LDT-4000-T3 Pallet Tipper: The LDT-4000-T3 has a raised clearance of 10 to 12 inches off the ground for an optimal working height to tip and turn boxes laying on their side to right side up for stacking on pallets.

LDT-4000-T4 Pallet Tipper: This low-duty tipper offers ground-level loading and unloading as well as fast cycle times from 25 to 30 seconds. The tipper is securely held in place with 12 anchors and features smooth and efficient hydraulic operation.
Low-Duty Tipper Benefits and Applications
Our low-duty tippers for sale are an excellent solution for a variety of warehouse, packing and distribution centers. When you have applications that call for tipping and turning boxes and heavy materials, having the right equipment can speed up processes and improve safety and efficiency. You benefit from fewer labor requirements and improved organization with reduced workplace injuries and product loss.

Partnering With Cherry's Industrial
We're proud to be a leading warehouse equipment supplier with over 35 years of industry experience. From competitive prices on a carefully selected product line to standing behind the equipment we sell 100%, we're the one-stop shop for businesses large and small. In addition to our selection of low-duty tippers for sale and other warehouse related machines, we also offer custom design services to meet your unique requirements.

For more information and a free quote, contact us online or give us a call at 224-328-1270 to speak with a knowledgable material handling specialist.
