Single Clamp Pallet Inverters

The SC Model is our most popular style of 180º pallet inverters offering a faster, easier way to rotate, switch or transfer loads and replace pallets. The SC Model is loaded / unloaded and relocated with a forklift or reach truck. Controls are easy to use & accessible from the seat of the lift truck. Many options and stock sizes to choose from. Manufactured & assembled in the USA.

Filtered on:

Category: Pallet Inverters, Single Clamp Pallet Inverters

Brand

Cherry's Industrial Equipment Corp

Available for Online Purchase

No

Category

Single Clamp Pallet Inverters
Wide Body Load Inverters
Showing 1 - 6 of 6

SC-63P Single Clamp Pallet Inverter

SKU:

SC-63P

|

Brand:

Cherry's Industrial Equipment Corp

The SC-63P 180° pallet inverter works well for everything from pallet replacement applications to recovering damaged bags of materials. You'll be able to complete more tasks in less time and minimize the risk of debilitating back injuries that could keep your workers off the job.

SC-75P Single Clamp Pallet Inverter

SKU:

SC-75P

|

Brand:

Cherry's Industrial Equipment Corp

SC-75P Named in part for its ability to handle loads of up to 75", the SC-75P single clamp skid turner provides a faster, easier solution for transferring, switching or rotating loads weighing as much as 4,400 lbs. You can also use it to replace damaged pallets with greater speed and efficiency.

SC-86P Single Clamp Pallet Inverter

SKU:

SC-86P

|

Brand:

Cherry's Industrial Equipment Corp

Free standing 180° inverter with single moving table, loaded and unloaded & relocated by forklift truck. Designed to invert or transfer loads ranging from 44'' to 86''. Features include: UL508 certified electrical panel, sx button operator pendant, maintenance lock bar, and 2" square tube heavy duty machinery guards. Three year parts and labor warranty. STANDARD UNIT - Always in Stock. Made in the USA

SC-90P Single Clamp Pallet Inverter

SKU:

SC-90P

|

Brand:

Cherry's Industrial Equipment Corp
Free standing 180 degree inverter with single moving table, loaded and unloaded & relocated by forklift truck. Designed to invert and transfer loads ranging from 42'' to 90''. Features include: UL508 Certified electrical panel, six button operator pendant, maintenance lock bar, and 2" square tube heavy duty machinery guards. Three year parts and labor warranty. (MTO) MADE TO ORDER. Made in the USA

SC-96P Single Clamp Pallet Inverter

SKU:

SC-96P

|

Brand:

Cherry's Industrial Equipment Corp
Free standing 180 degree inverter with single moving table, loaded and unloaded & relocated by forklift truck. Designed to invert and transfer loads ranging from 48'' to 96''. Features include: UL508 Certified electrical panel, six button operator pendant, maintenance lock bar, and 2" square tube heavy duty machinery guards. Three year parts and labor warranty. SPECIAL ORDER. Made in the USA

SC Pallet Inverter - Extra Wide Basket

SKU:

SC-63P/DBL

The SC-63P/DBL pallet inverter is ideal for flipping over wide loads; combining product from two pallets onto a larger size pallet or turning over two pallets at once to save loading time. Customization can include: 4,400 and 6,600 lb capacities; standoffs and slipsheet profiles for pallet less loading/unloading; push button, lanyard or auto controls; extended clamp range, interlock logic; light curtains and perimeter guards for employee protection.

Showing 1 - 6 of 6



Stationary Single Clamp Pallet Inverter Features

A Single Clamp pallet inverter will help reduce your production, storage, distribution, and retrieval costs while making pallet swaps quick and easy. You can load and transfer products from pallet to pallet or a slip sheet or rental pallet. Other features of our SC pallet flipper includes:. Other features of our pallet flippers include:

Functions

  • Completely stable under its own weight

  • Only requires an electrical connection to function

  • Good line of sight for easy loading and unloading

Operation

  • Ability to handle almost any type of palletized load

  • One fixed table and one moving table.

  • Fewer moving parts, simple maintenance and greasing

Safety

  • Maintenance locks

  • Loading holding counterbalance valves to hold and maintain pressure

  • Forklift protection or personnel protective guarding

Special-Order Modifications

You have identified a challenge in your warehouse and have determined that a pallet inverter will be the best solution. After narrowing down your search to some specific models you're not quite sure that this machine will completely handle all of your products or solve the problem entirely. Not to worry, we offer dozens of standard options or special order modifications that can be quickly built and won’t break the bank.

At Cherry's Industrial Equipment, we offer a wide variety of special order modification equipment. From simple upgrades to complex builds, we work with you to ensure that our equipment improves the efficiency of your business operations while maximizing employee safety. Our team of experts can determine the best pallet inverter modification for your specific needs. Call or contact us today to learn more about our special order modification options.

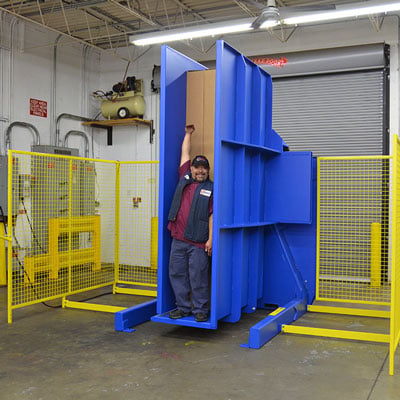

Wide Body

Our SC-Single clamp pallet inverter offers special-order modifications to handle oversized and side-by-side loads with ease. The turning body is centered on the base frame with the basket and clamping table widened to accommodate your loads (60” wide and above up to 110” wide). Reinforced with additional steel, bracing and gussets to prevent flexing during load compression and inversion. Learn more!

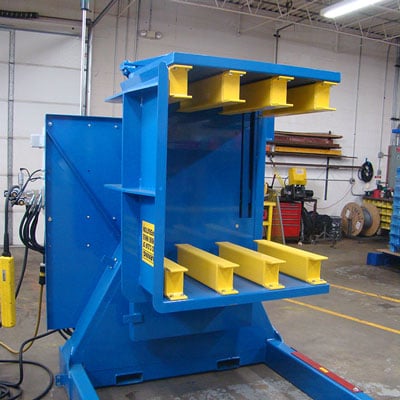

Palletless Standoffs

For varying height loads, a dual clamp industrial pallet inverter might be the better choice. It has the largest clamping range of all currently available inverters, with a 4,400-pound load capacity. A dual clamp model is typically the best choice for inbound load transfers that entail a variety of package and container types and sizes.

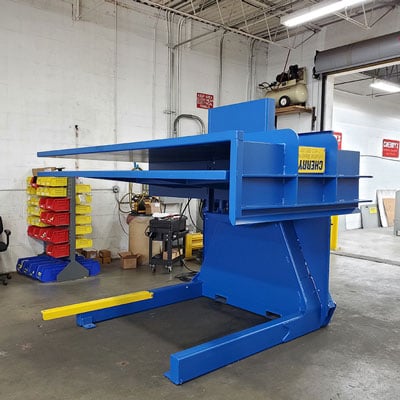

Extended Clamp Range

Facilities with limited space or a lack of heavy lifting equipment like forklifts might not be the ideal location for a standard pallet rotator inverter. The ground loading inverter is designed specifically to be used in conjunction with manual and electric pallet trucks, improving supply chain efficiency without the need for additional heavy equipment.

Not Finding what You Need?

Custom solutions are completely within reach. At Cherry's Industrial Equipment, we offer budget-friendly custom equipment solutions that are 100% tailored to your facility's needs, no matter how unique.
All of that comes with turnkey service and speedy turnarounds. Learn more about our custom solutions today!

Contact Us

Industry Applications

Use Cherry's Industrial SC pallet inverters in a wide range of different industries and applications. Our equipment makes it easy to rotate loaded pallets on their side without disturbing their contents or risking an accident. For this reason, SC inverters are ideal for use by food and pharma companies, as well as in warehousing and shipping operations.

With an SC pallet inverter, you can transfer heavy loads from a wooden pallet to a sanitary plastic base, a common occurrence when unloading new shipments in a clean facility. Food warehouses also use pallet inverters to prevent caking and binding in delicate powders — when a sensitive product requires long-term storage, regular rotation can help maintain its integrity.

Finally, single clamp pallet inverters can be used to improve productivity and efficiency in general material handling applications. Inverters allow workers to quickly and easily move loads from one pallet to the next.

These are just a few of the many potential uses for a Cherry's Industrial pallet inverter. When it comes to finding the right pallet inverter for your company know that the specifics of your application will play a role in determining the best model for your needs. Explore your options using the links on this page.

Single Clamp vs. Double Clamp

The SC series of single clamp pallet inverters is just one of the options offered at Cherry’s Industrial. Single clamp models are simpler and easier to maintain. They are ideal for short transfers of palletized loads, simple product inversion or loads that do not have a big variance in height. For more demanding applications, consider upgrading to a double clamp model. These units offer an increased range and a balanced center of gravity — perfect for applications requiring smoother transitions, such as those involving sensitive pharmaceuticals or other chemicals.

Forklift Loaded Pallet Inverters

Our forklift loaded pallet inverters, such as the SC Series 180-Degree Pallet Inverter, will streamline the process to rotate, switch or transfer loads. You can easily transfer loads from a wood pallet to a plastic pallet or even a slip sheet or rental pallet. Plus, you can remove broken or damaged products efficiently.

With a forklift loaded pallet inverter, you can significantly reduce back injuries. Employees won't have to endure the same level of hard manual labor, and you'll benefit from reduced time off due to injury. This pallet inverter comes with a wide range of control options and machine guarding choices, including:

The Cherry's Difference

Quality matters to you, and it matters to us. We manufacture and assemble our equipment in the U.S. We understand the importance of quality and ergonomics, which is why our durable, long-lasting machines are built to make your job easier.

Cherry's Industrial has a team of material handling specialists that can help you find the right stationary single clamp pallet inverter. If you need help finding a single clamp pallet inverter, contact us today by calling 224-268-8947 or email us for more information.
